wrap_and_limit #

The wrap_and_limit library provides a custom Flutter widget called WrapAndLimit that allows you to display child widgets within a Wrap layout and handle cases where the number of children exceeds a specified maximum row count.

The WrapAndLimit widget lays out its children in a Wrap widget and displays the specified overflowWidget when the children exceed the maximum number of rows specified by the maxRow parameter. The number of children to display is automatically determined based on the available space within the Wrap.

You can use this widget to achieve:

• Limiting the number of rows
• Get the count of the remaining children

Features #

Getting started #

In your flutter project pubspec.yaml add the dependency:

dependencies:

  wrap_and_limit: ^[version]

Usage #

Now in your Dart code, you can use:

import 'package:wrap_and_limit/wrap_and_limit.dart';

Add WrapAndLimit in your build method.

WrapAndLimit(
   maxRow: 2,
   spacing: 8.0,
   runSpacing: 8.0,
   overflowWidget: (restChildrenCount) {
     return Text(
       '+ $restChildrenCount more',
       style: TextStyle(color: Colors.grey),
     );
   },
   children: [
     // Add your widgets here
   ],
 )

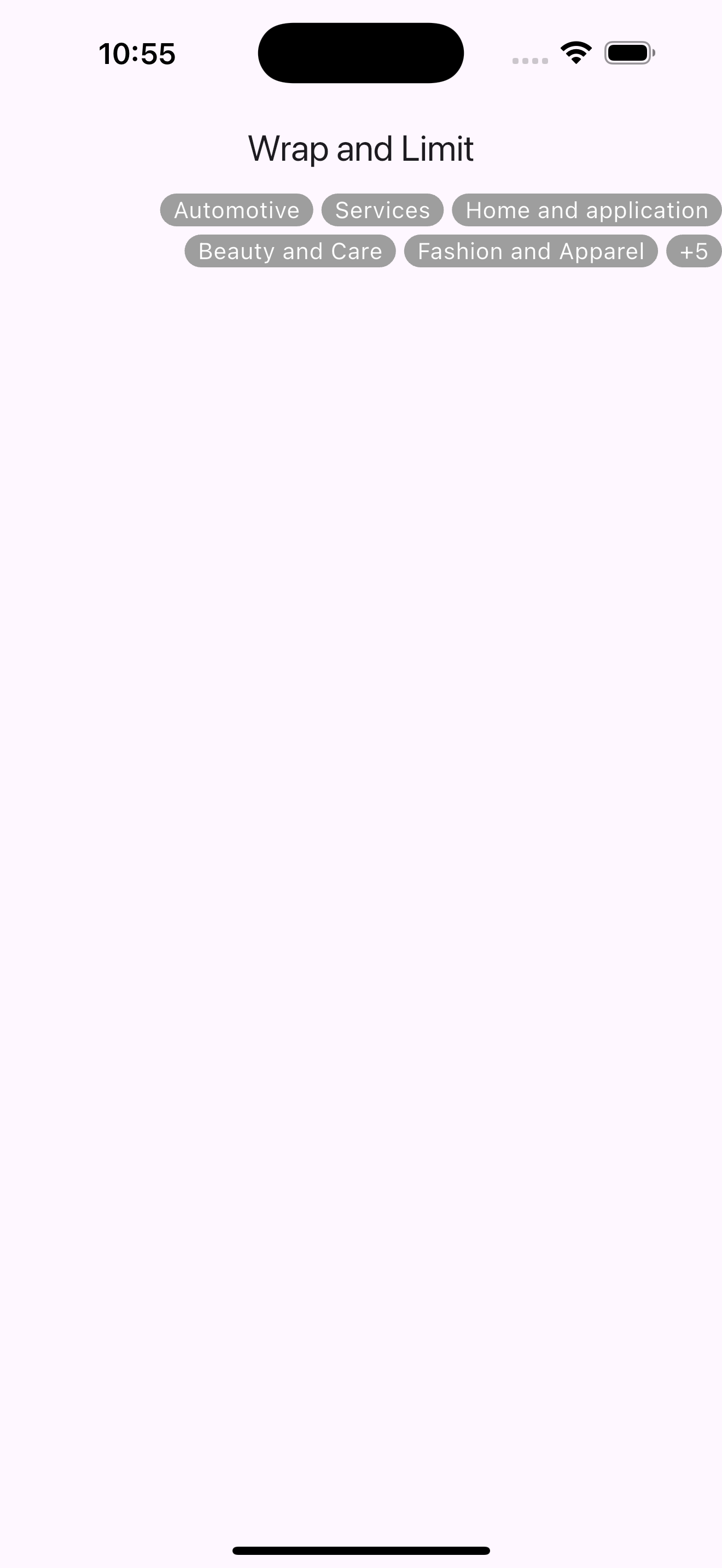

Full example:

import 'package:flutter/material.dart';
import 'package:wrap_and_limit/wrap_and_limit.dart';

void main() => runApp(const MyApp());

/// The main application widget that sets up the MaterialApp and displays a list of categories
/// using the `WrapAndLimit` widget to manage layout and overflow.
class MyApp extends StatelessWidget {
  /// Constructor for `MyApp`.
  const MyApp({super.key});

  /// A static list of category names to be displayed as chips.
  static const List<String> categories = [
    "Automotive",
    "Services",
    "Home and application",
    "Beauty and Care",
    "Fashion and Apparel",
    "Technology and Electronics",
    "Health and Wellness",
    "Food and Beverages",
    "Toys and Games",
    "Books and Entertainment",
  ];

  /// Builds the widget tree for the application.
  ///
  /// Returns a `MaterialApp` with a `Scaffold` containing an `AppBar` and a `Row`
  /// with a `WrapAndLimit` widget to display the categories.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      home: Scaffold(
        appBar: AppBar(
          title: const Text("Wrap and Limit"),
        ),
        body: Row(
          children: [
            Expanded(
              child: WrapAndLimit(
                alignment: WrapAlignment.end,
                maxRow: 4,
                spacing: 5,
                runSpacing: 5,

                /// A widget to display when there are more children than the maximum rows allowed.
                /// Shows the number of remaining children as a chip.
                overflowWidget: (restChildrenCount) {
                  return MyChip(text: "+$restChildrenCount");
                },

                /// Maps the `categories` list to a list of `MyChip` widgets.
                children: categories
                    .map(
                      (e) => MyChip(text: e),
                )
                    .toList(),
              ),
            ),
          ],
        ),
      ),
    );
  }
}

/// A custom widget that represents a chip with a text label.
class MyChip extends StatelessWidget {
  /// The text to display inside the chip.
  final String text;

  /// Constructor for `MyChip`.
  const MyChip({
    super.key,
    required this.text,
  });

  /// Builds the widget tree for the chip.
  ///
  /// Returns a `Container` with padding, a grey background, rounded corners,
  /// and white text displaying the chip's label.
  @override
  Widget build(BuildContext context) {
    return Container(
      padding: const EdgeInsets.symmetric(horizontal: 8),
      decoration: BoxDecoration(
          color: Colors.grey, borderRadius: BorderRadius.circular(10)),
      child: Text(
        text,
        style: const TextStyle(color: Colors.white),
      ),
    );
  }
}

Important parameters and explanation #

Issue #

Please file any issues, bugs or feature requests as an issue on our GitHub page.
