Sankey Flutter #

A Flutter package for rendering beautiful and interactive Sankey diagrams. This package adapts the proven d3-sankey layout algorithm into Dart, enabling complex node-link flow diagrams with high performance directly in your Flutter apps.

What's New in v0.0.3 #

• Gradient Links - Smooth color transitions between source and target nodes
• Texture Overlay - Optional subtle patterns on links for enhanced visual depth
• HSL Selection Borders - Contrasting borders on selected nodes using intelligent color manipulation
• Type Safety - Strongly typed SankeyLink.source and SankeyLink.target as SankeyNode
• Improved API - New onNodeSelected(SankeyNode?) callback with full node object access
• Responsive Example - Demo app with LayoutBuilder for adaptive sizing

Features #

• Gradient Links: Smooth color transitions between source and target nodes using LinearGradient shaders
• Interactive Selection: Tap nodes to select them with HSL-based contrasting border highlights
• Texture Overlay: Optional subtle texture patterns on links for enhanced visual depth
• Dynamic Layout: Automatically compute node and link positions using d3-sankey algorithm
• Customizable Appearance: Adjust node width, padding, alignment, colors, and theming
• Responsive Design: Built-in support for responsive layouts using LayoutBuilder
• Toggleable Labels: Show or hide node labels as needed

Installation #

Add the following dependency to your pubspec.yaml file:

dependencies:
  sankey_flutter: ^0.0.3

Then run:

flutter pub get

Quick Start #

import 'package:flutter/material.dart';
import 'package:sankey_flutter/sankey_helpers.dart';
import 'package:sankey_flutter/sankey_node.dart';
import 'package:sankey_flutter/sankey_link.dart';

// 1. Define your nodes
final nodes = [
  SankeyNode(id: 0, label: 'Source A'),
  SankeyNode(id: 1, label: 'Source B'),
  SankeyNode(id: 2, label: 'Target'),
];

// 2. Define links between nodes
final links = [
  SankeyLink(source: nodes[0], target: nodes[2], value: 100),
  SankeyLink(source: nodes[1], target: nodes[2], value: 50),
];

// 3. Generate colors and layout
final nodeColors = generateDefaultNodeColorMap(nodes);
final dataSet = SankeyDataSet(nodes: nodes, links: links);
final sankey = generateSankeyLayout(width: 600, height: 400);
dataSet.layout(sankey);

// 4. Use the widget
SankeyDiagramWidget(
  data: dataSet,
  nodeColors: nodeColors,
  size: Size(600, 400),
  showLabels: true,
  showTexture: true,
  onNodeSelected: (node) {
    print('Selected: ${node?.displayLabel}');
  },
)

Widget Parameters #

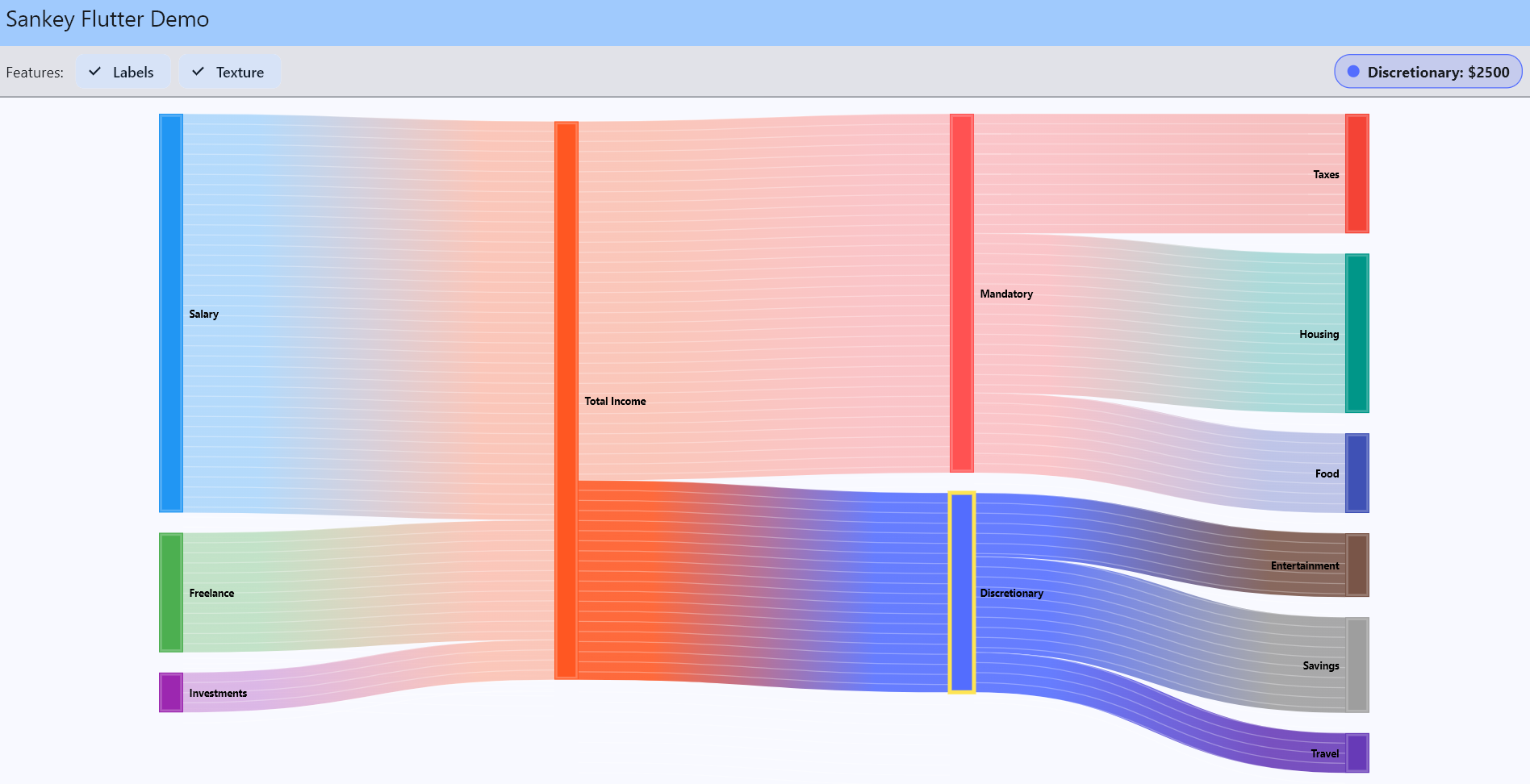

Example #

For a complete working example with interactive controls and responsive layout, see example/main.dart.

The example demonstrates:

• Toggle switches for labels and texture
• Node selection with value display
• Responsive sizing with LayoutBuilder
• Personal finance flow visualization

API Reference #

SankeyNode #

SankeyNode(id: dynamic, label: String?)

• displayLabel: Returns label or falls back to id.toString()
• contains(Offset): Hit testing for tap detection

SankeyLink #

SankeyLink(source: SankeyNode, target: SankeyNode, value: double)

Layout Configuration #

generateSankeyLayout(
  width: 1000,      // Canvas width
  height: 600,      // Canvas height
  nodeWidth: 20,    // Width of each node
  nodePadding: 15,  // Vertical padding between nodes
)

Documentation #

For detailed API documentation, visit the pub.dev package page.

Contributing #

Contributions are welcome! This package strives to closely mirror the output of d3-sankey to ensure familiarity and reliability.

License #

This project is licensed under the BSD-3-Clause License.
