flutter_ui_inspector #

Debug-only UI inspection tools for Flutter. Inspect widget state, rebuild frequency, performance, and a floating panel without impacting release builds.

Why #

Debugging UI issues is hard when you can’t see rebuild churn or widget state transitions. This package overlays lightweight badges and tools to surface that information in debug mode only.

Features #

• Rebuild tracking: Badges per widget with rebuild count and frequency stats (rebuilds/sec).
• UI state badges: Visualize state (loading, error, empty, ready) directly on widgets.
• Draggable Inspector Panel: Floating panel to view all tracked widgets, sort by rebuilds, and toggle settings.
• Search & Filter: Quickly find widgets in the inspector panel.
• Rebuild Heatmap: Global red vignette overlay that intensifies with rebuild frequency.
• Performance Tracking: Monitor FPS and jank frames.
• Console Logging: Auto-log warnings when widgets exceed rebuild thresholds.
• Settings Persistence: functionality toggles (badges, heatmap, etc.) are saved across restarts.
• Debug-only: logic is stripped or inactive in release mode.

Screenshots #

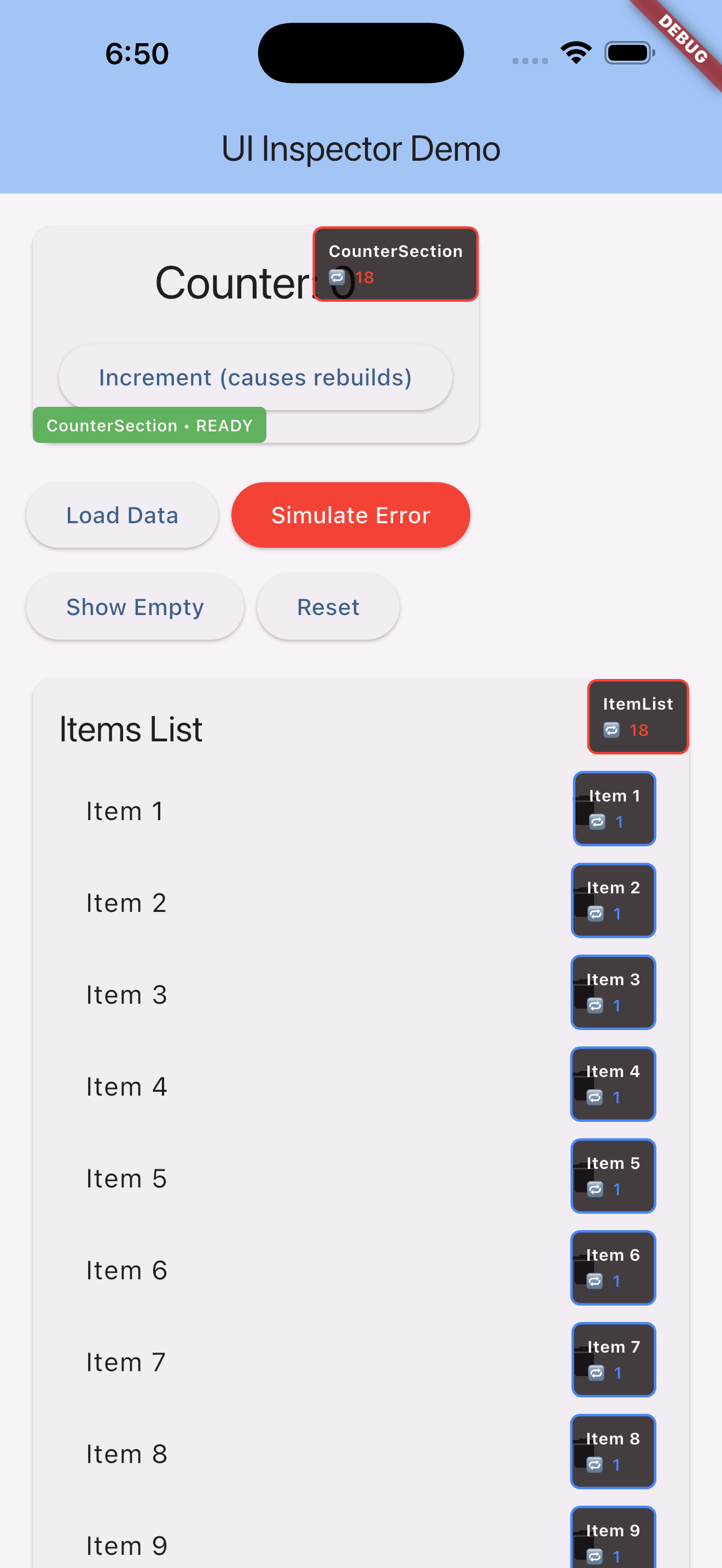

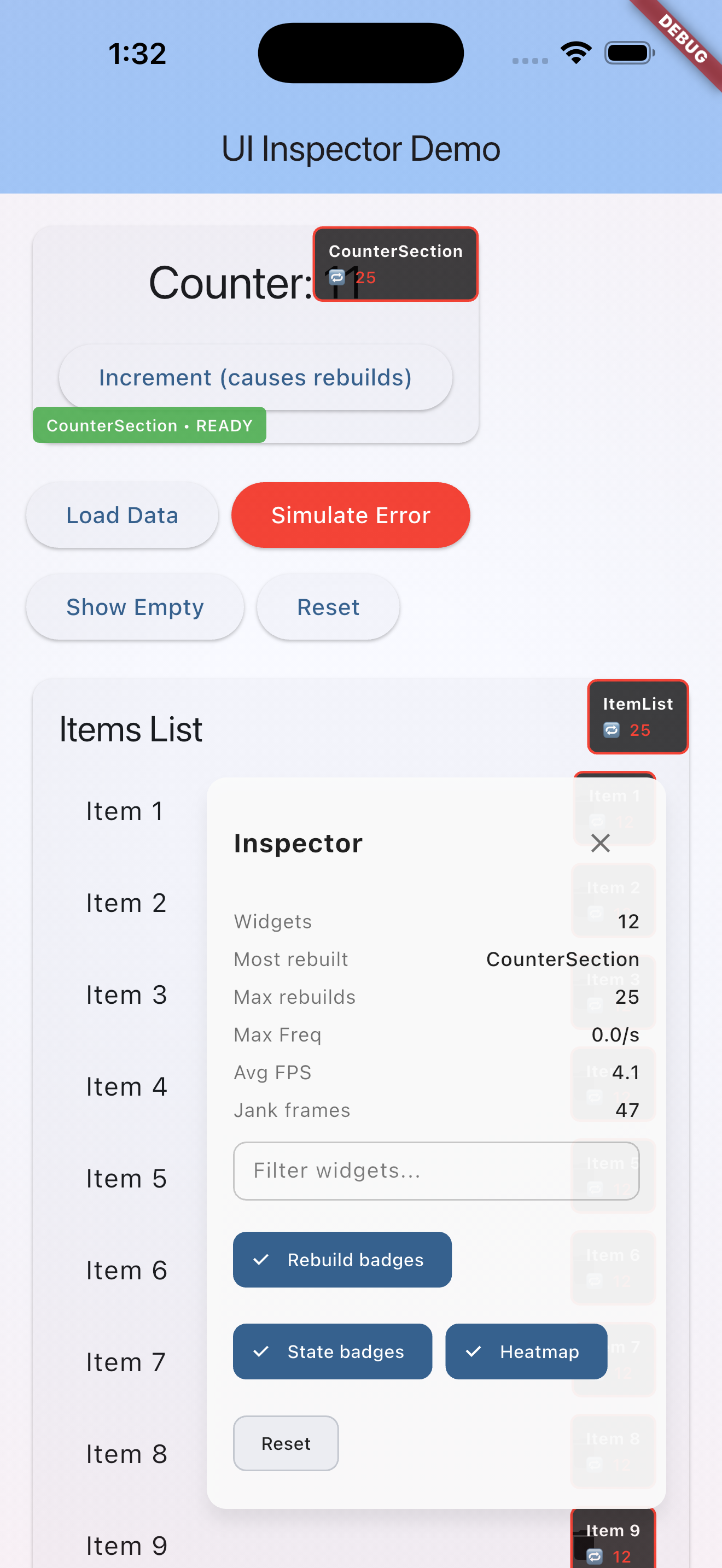

Main Demo	Inspector Panel & Badges

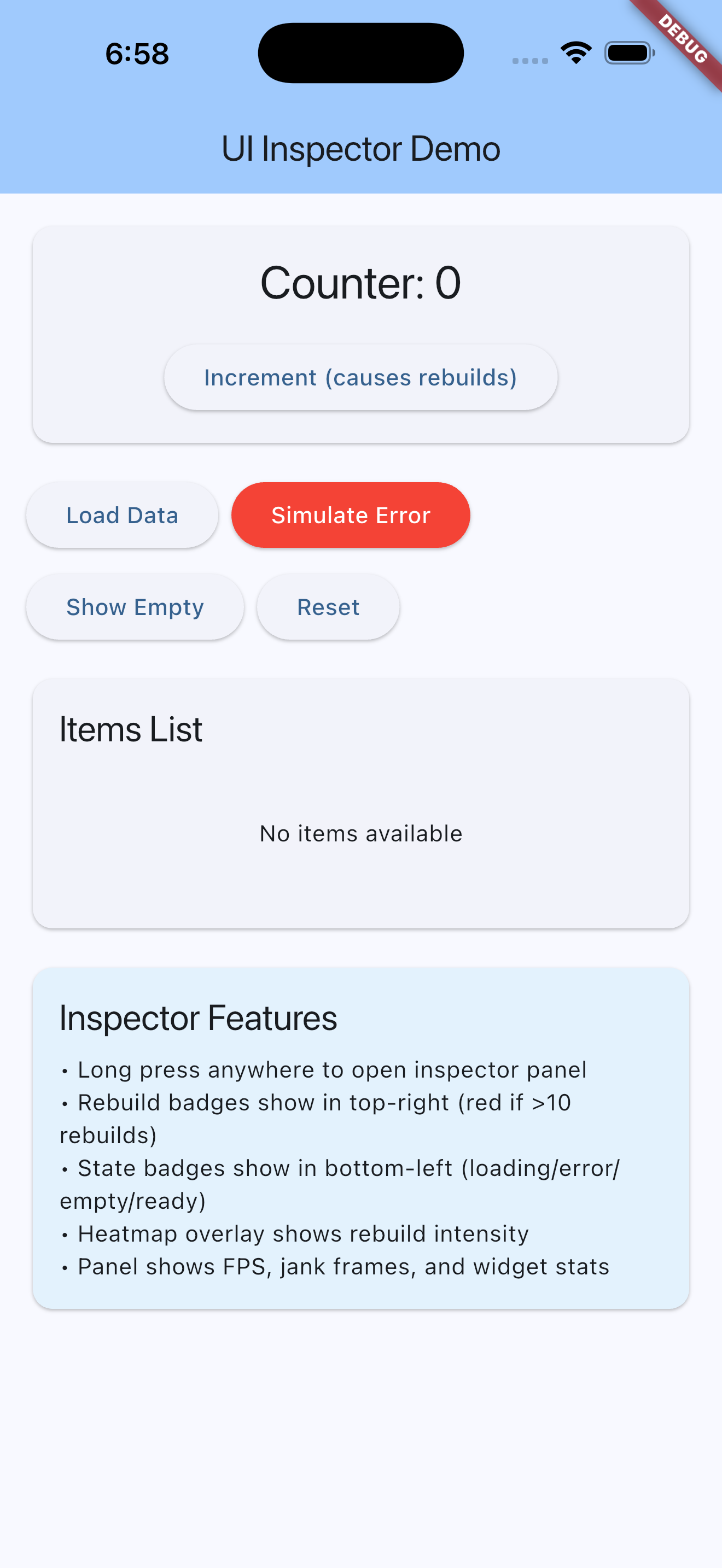

Without Inspector	With Inspector

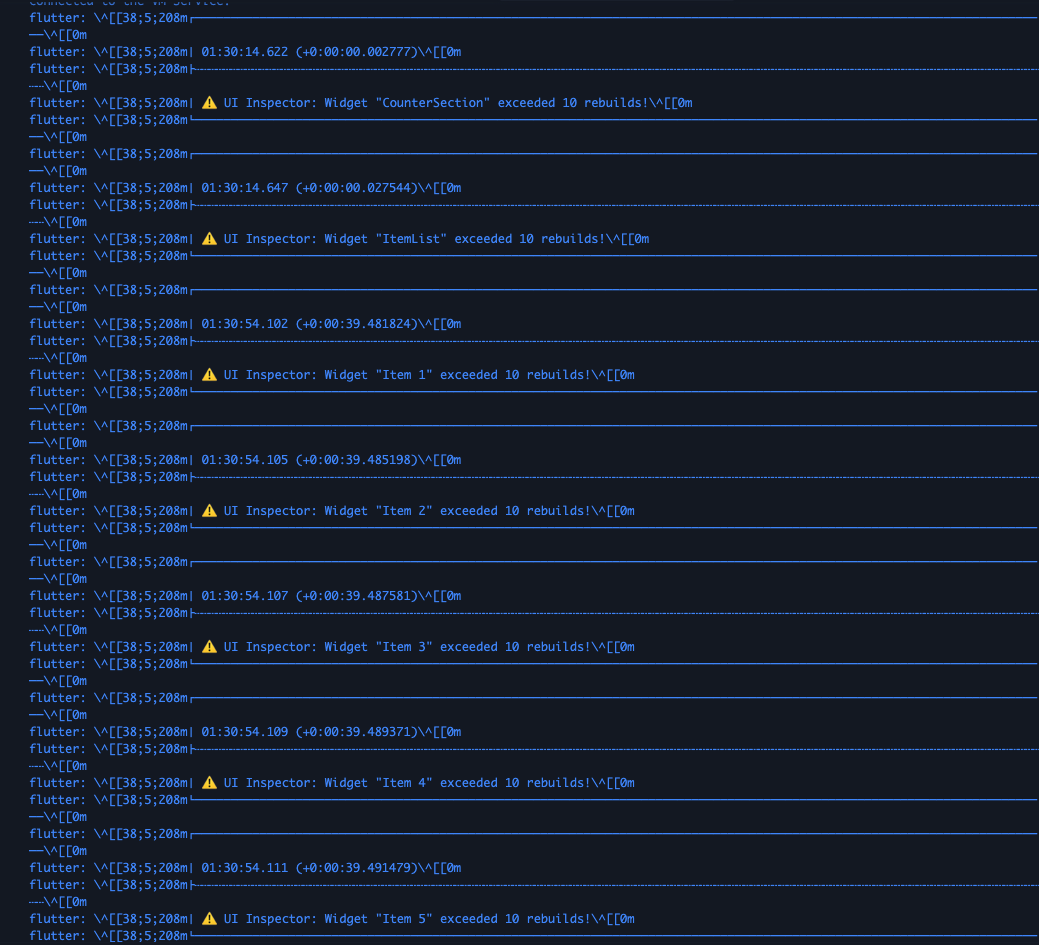

Console Logging #

Safety #

• Guarded by kDebugMode and UiInspectorConfig.enabled
• No platform channels; Flutter-only
• Nothing activates in release mode

Installation #

dependencies:
  flutter_ui_inspector: ^1.1.0

Quick Start #

Track state + rebuilds #

import 'package:flutter_ui_inspector/flutter_ui_inspector.dart';

class UserListView extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return UiInspector(
      name: 'UserList',
      loading: true, // or from your state
      error: false,
      empty: false,
      child: ListView(children: const [Text('Item')]),
    );
  }
}

Track rebuilds only #

RebuildTracker(
  name: 'ProfileCard',
  child: ProfileCard(),
);

Configuration #

UiInspectorConfig.enabled = true;
UiInspectorConfig.showRebuildCount = true;
UiInspectorConfig.showStateBadge = true;
UiInspectorConfig.trackPerformance = false;
UiInspectorConfig.enableHeatmap = false;
UiInspectorConfig.logOnRebuildWarning = true; // Log warnings to console
UiInspectorConfig.rebuildWarningThreshold = 10;
UiInspectorConfig.jankFrameThresholdMs = 16.0;

// Initialize persistence (optional but recommended)
await UiInspectorConfig.init();

Panel & Heatmap #

• Call UiInspectorPanel.enable() in your main() or root widget (optional gesture: longPress or tripleTap).
• Heatmap renders inherently as a global overlay when enabled.

Limitations #

• Debug-only: badges/panel/heatmap are inactive in release builds.
• Badge Geometry: Rebuild badges are rendered inside the widget tree (Stack); they may be clipped by parents with clipBehavior.
• Heatmap: The heatmap is a global full-screen vignette, not a localized spatial heatmap per widget.
• Frame tracking: Requires UiInspectorConfig.trackPerformance = true to be enabled.

Support #

If you encounter any issues or have questions, please:

• Open an issue on GitHub
• Email: [email protected]
• Check existing issues for solutions
• Review the documentation above

Show Your Support #

If this package has been helpful, please consider:

• ⭐ Starring the repository on GitHub
• 🐛 Reporting bugs or suggesting features
• 📖 Sharing with other Flutter developers
• 💬 Providing feedback and improvements

License #

MIT License (see LICENSE).
