flutter_debug_tools 2.0.4

flutter_debug_tools: ^2.0.4 copied to clipboard

In-app debug tools for Flutter UI, rendering, logs, navigation, and device diagnostics - no context switching required.

Features • Installation • Quick Start • Debug Logs • Tips • License

Screenshots

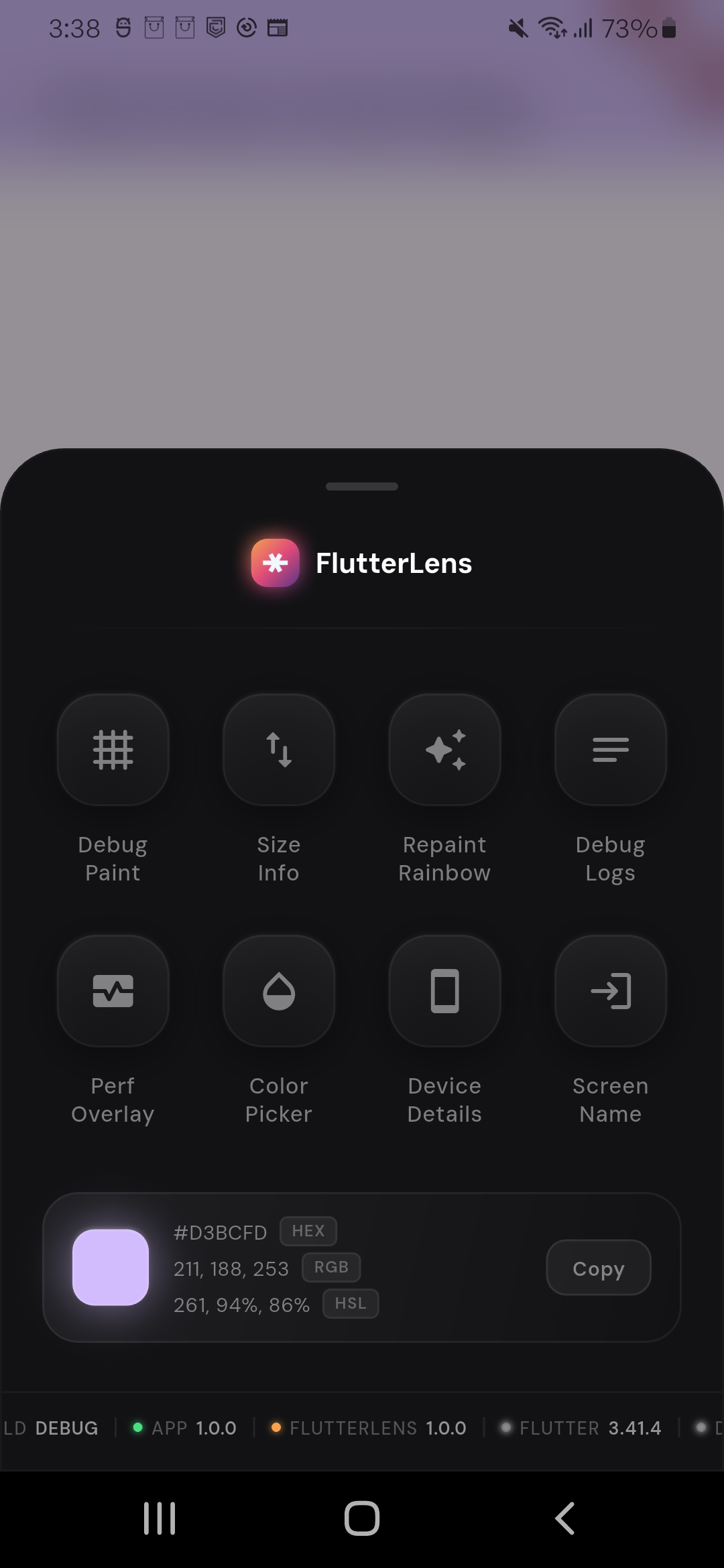

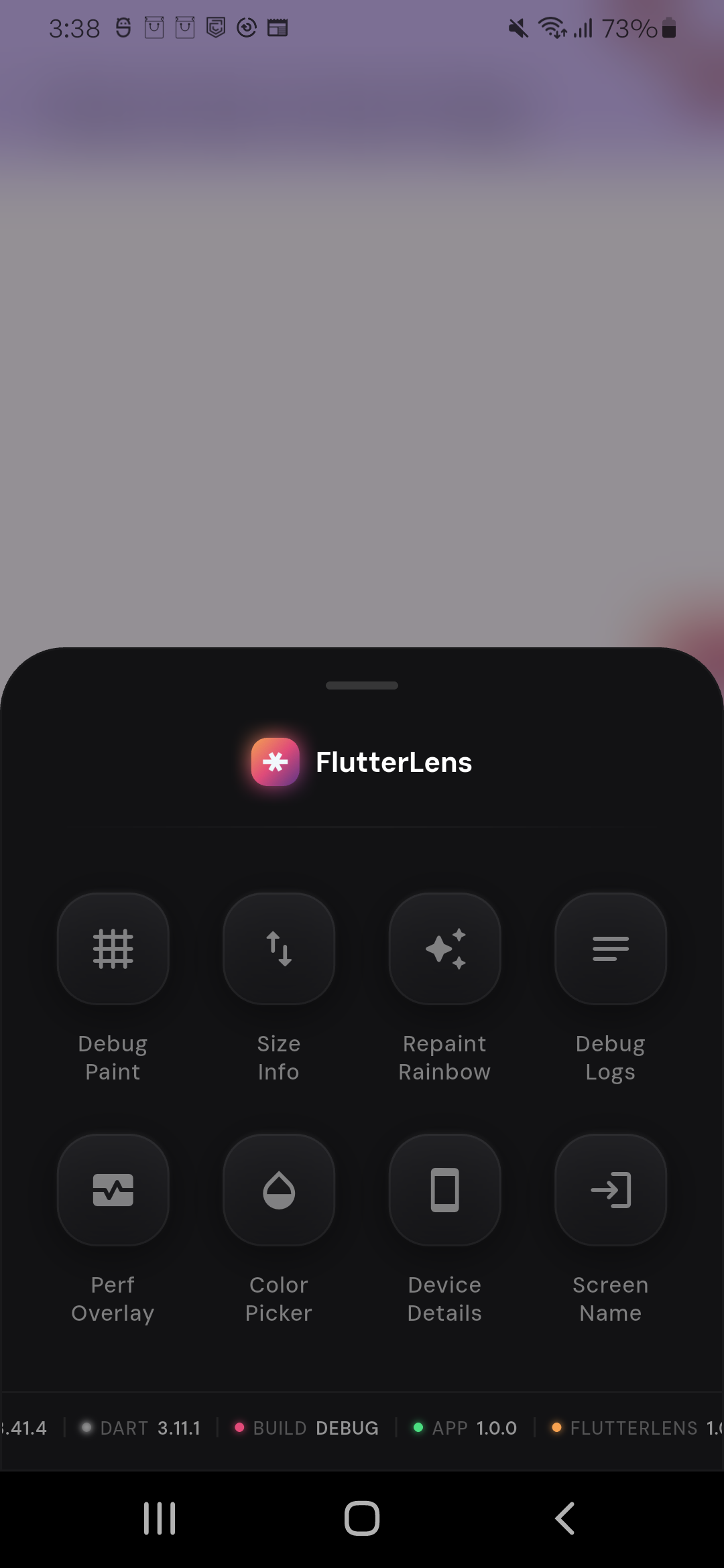

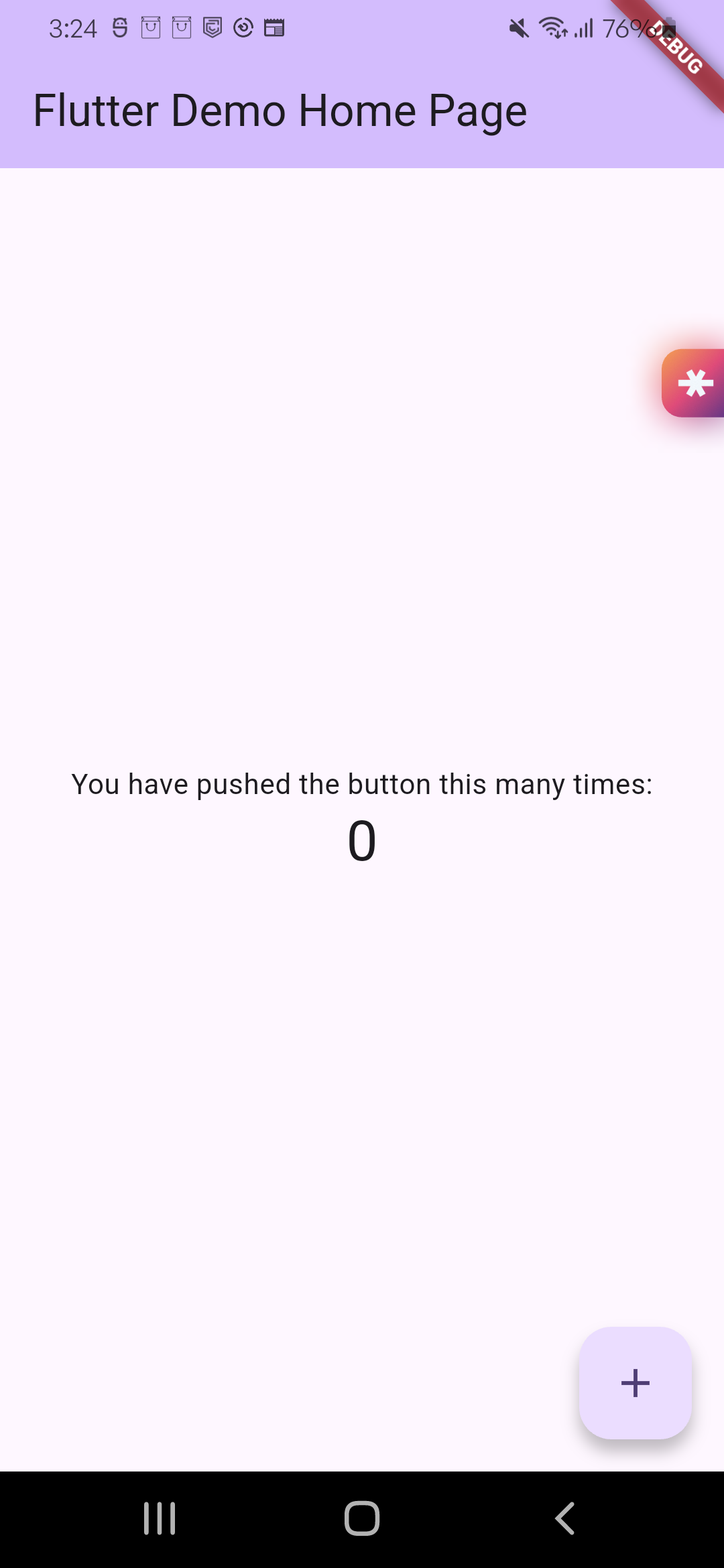

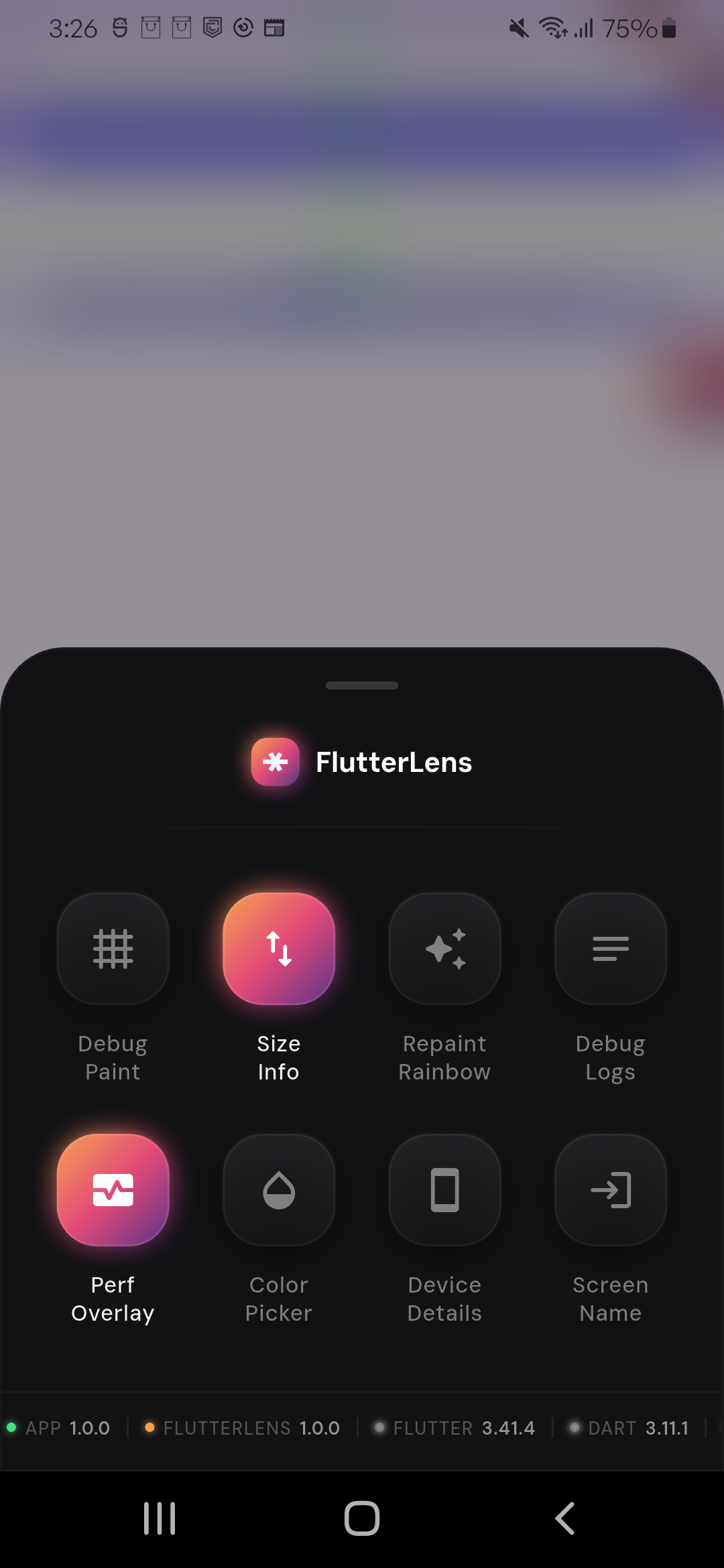

🧲 Edge tray launcher docked to the right side; draggable and always accessible.	📋 Bottom sheet tools grid with active/inactive visual states and quick toggles.	🎨 Color result card showing selected color in HEX, RGB, and HSL with copy action.

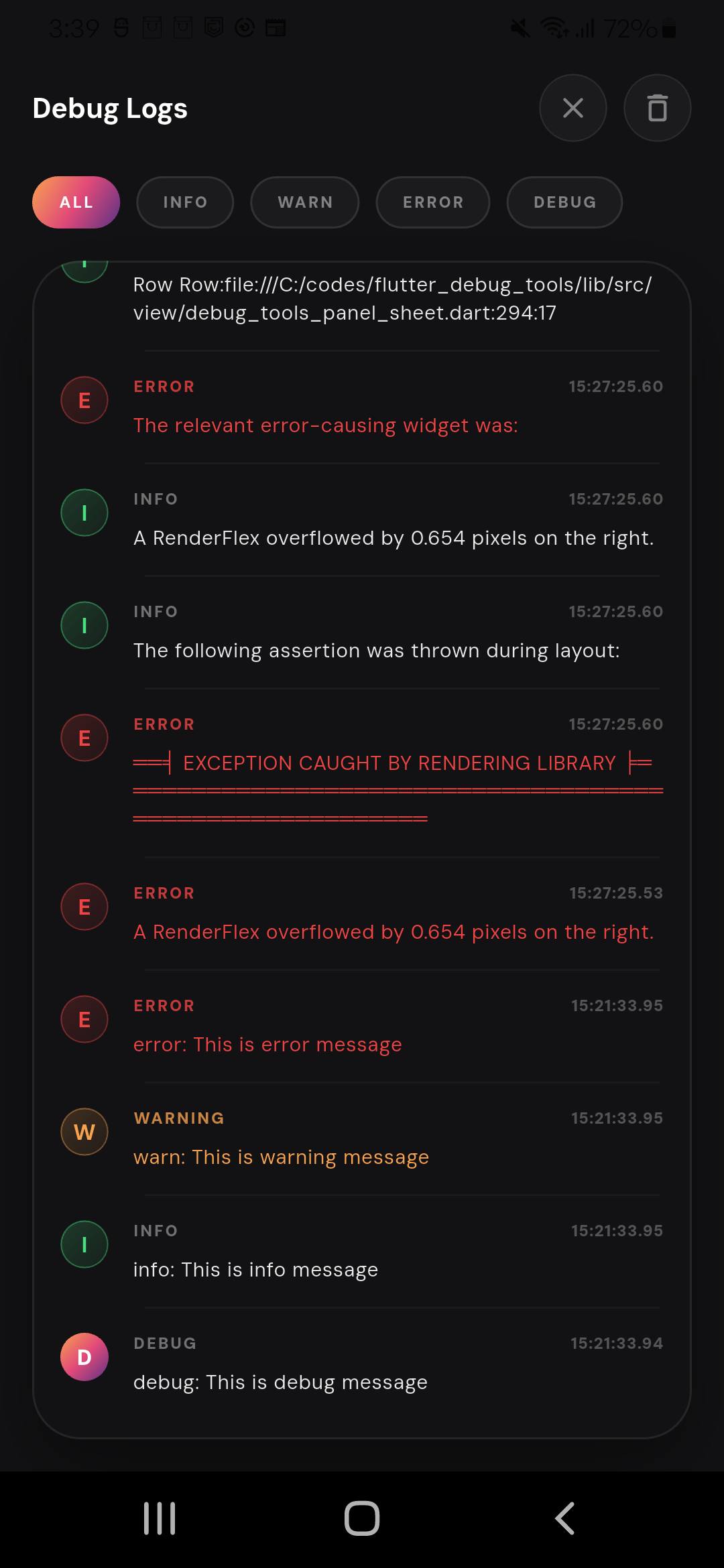

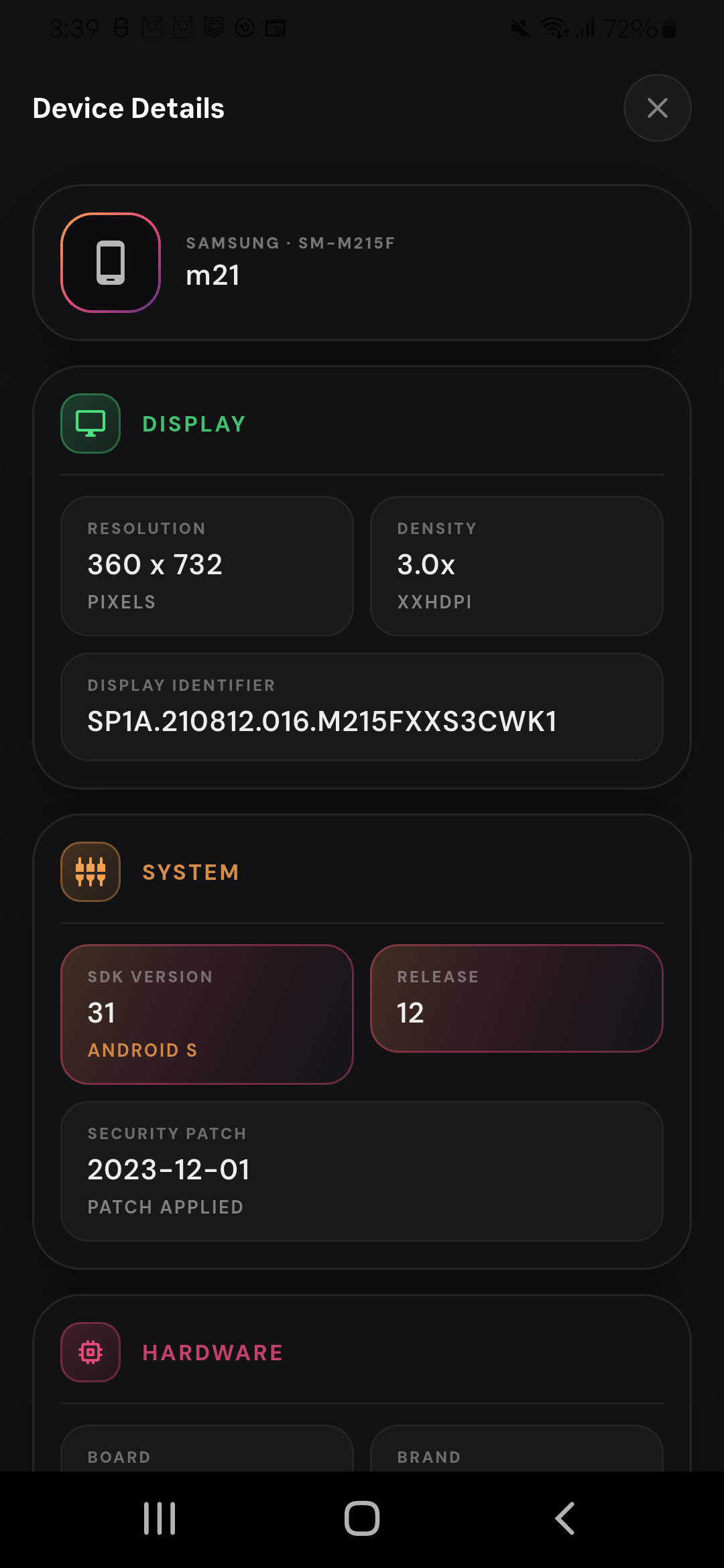

🧾 Version ticker displaying app, FlutterLens, Flutter, Dart, and build mode details.	📱 In-app debug logs to inspect console logs inside the running app.	⚡ Device details to quickly check and share device details.

✨ Features #

• 🧭 Screen Name Overlay: See the active route/screen while navigating.
• 📋 Debug Logs Viewer: Capture and inspect console logs inside the running app.
• 🌐 Network Inspector: Capture request/response timing, headers, payloads, failures, and retry attempts.
• 📱 Device Details: Inspect model, OS, screen metrics, and hardware info in-app.
• 🎯 Color Picker: Pick any on-screen pixel color quickly.
• 🧱 Debug Paint / Layout Insights: Visualize layout boundaries and spacing behavior.
• 🌈 Repaint Rainbow: Spot frequent repaints to detect expensive widgets.
• 🎛️ Animation Toolbox: Control animation speed, pause, disable animations, frame timing HUD, and animated-region highlights.
  • Includes global curve presets (for example: System, Linear, Ease In Out, Bounce Out, and more) for animations that opt into FlutterLens curve scope.
• ⚡ Performance Overlay Toggle: Enable Flutter performance overlay directly from the panel.
• 🧲 Edge Tray Launcher: Open FlutterLens from a draggable edge tray.
• 🧾 Version Ticker: Live ticker for app/build/flutter/dart/FlutterLens versions.
• 🎨 Picked Color Card: View HEX/RGB/HSL + copy from the panel.
• 💾 Sticky Debug Toggles: Core flags are persisted across launches.

🧰 Tool-by-tool quick map #

• Debug Paint → toggles debugPaintSizeEnabled
• Size Info → enables render box inspector overlay
• Repaint Rainbow → toggles debugRepaintTextRainbowEnabled
• Debug Logs → opens in-app logs viewer
• Network Inspector → opens in-app request/response inspector
• Perf Overlay → toggles showPerformanceOverlay
• Color Picker → pixel pick + color card/copy flow
• Device Details → opens device info sheet
• Screen Name → route name overlay (with DebugNavigatorObserver)
• Animation Toolbox → animation speed/pause/disable/highlight controls

📦 Installation #

Add this to your pubspec.yaml:

dependencies:
  flutter_debug_tools: ^2.0.4

Then run:

flutter pub get

🚀 Quick Start #

import 'package:flutter/material.dart';
import 'package:flutter_debug_tools/flutter_debug_tools.dart';

Future<void> main() async {
  await DebugLogCapture.runApp(() async {
    runApp(const MyApp());
  });
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    final navigatorObserver = DebugNavigatorObserver();

    return FlutterLens(
      builder: (context, showPerformanceOverlay, child) {
        return MaterialApp(
          title: 'FlutterLens Demo',
          showPerformanceOverlay: showPerformanceOverlay,
          navigatorObservers: [navigatorObserver],
          home: const Placeholder(),
        );
      },
    );
  }
}

🧩 Minimal integration (without log zone wrapper) #

import 'package:flutter/material.dart';
import 'package:flutter_debug_tools/flutter_debug_tools.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return FlutterLens(
      builder: (context, showPerformanceOverlay, child) {
        return MaterialApp(
          showPerformanceOverlay: showPerformanceOverlay,
          home: const Placeholder(),
        );
      },
    );
  }
}

🎚️ Opt animations into global curve override #

Animation Toolbox curve presets apply to animations that resolve their curve from FlutterLensAnimationCurveScope:

final curve = FlutterLensAnimationCurveScope.resolve(context, Curves.easeInOutCubic);

AnimatedContainer(
  duration: const Duration(milliseconds: 500),
  curve: curve,
  child: const Placeholder(),
)

🎛️ Disable in non-debug environments #

FlutterLens(
  isEnabled: kDebugMode,
  builder: (context, showPerformanceOverlay, child) {
    return MaterialApp(
      showPerformanceOverlay: showPerformanceOverlay,
      home: const HomeScreen(),
    );
  },
)

🧾 Debug Logs (How It Works) #

• ✅ Captures Dart-side console logs (including print output in the wrapped zone)
• ✅ Captures framework/platform error callbacks and shows them in the logs viewer
• ✅ Lets you filter logs by level (All, Info, Warn, Error, Debug)
• ✅ Tap any log row to copy it to clipboard

If you already use another logger, you can still use it; FlutterLens will continue showing captured console/error output in the viewer.

🔎 What gets captured #

• print(...) output (inside DebugLogCapture.runApp zone)
• FlutterError.onError
• PlatformDispatcher.instance.onError
• uncaught zoned async exceptions

📚 Public logging APIs #

• DebugLogCapture.install()
• DebugLogCapture.runApp(() async { ... })
• DebugLogStore.instance.add(...)
• DebugLogStore.instance.clear()

🧭 Navigation integration #

To populate route names in the Screen Name overlay, attach DebugNavigatorObserver:

MaterialApp(
  navigatorObservers: [DebugNavigatorObserver()],
  home: const HomeScreen(),
)

🖱️ Panel interactions #

• Swipe down on the panel to dismiss.
• Tap outside the panel to dismiss.
• Drag the right-edge tray up/down to reposition.
• Tap the tray to open FlutterLens.

🌐 Network Inspector coverage #

• Captures requests made through dart:io HttpClient (including typical package:http usage on Android/iOS/desktop).
• Does not capture web fetch/XHR traffic.

💡 Tips #

• Use FlutterLens only in debug/dev environments.
• Add DebugNavigatorObserver for better route visibility in overlays.
• Keep an eye on Repaint Rainbow + Performance Overlay together for quick perf diagnosis.
• Use FlutterLensAnimationCurveScope.resolve(...) in your app animations when you want Animation Toolbox curve overrides to affect them.
• Network Inspector currently targets dart:io HttpClient traffic.
• If Dart/Flutter versions show fallback values, pass build-time dart-defines for those keys.

🙌 Credits #

Built with:

• shared_preferences
• device_info_plus

🐞 Bugs or Requests #

• Bug report: Open issue
• Feature request: Open request
• PRs are welcome! 🎉

📄 License #

MIT License
