fft_recorder_ui #

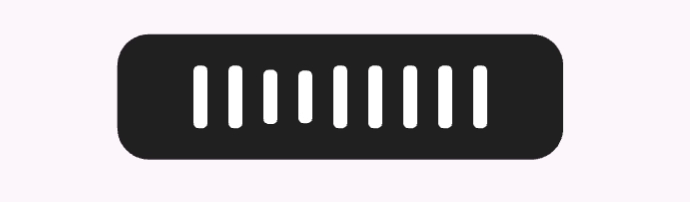

A beginner-friendly audio recorder + FFT bar visualizer Flutter package.
Built on top of flutter_recorder and renders bars with container heights without CustomPainter.

📋 Table of Contents #

• Package Overview
• Key Features
• Installation
• Permissions Setup
• Quick Start
• Step-by-Step Tutorial
• API Documentation
• Troubleshooting Guide
• Platform-Specific Guide
• Advanced Usage
• Example App

🎯 Package Overview #

fft_recorder_ui is a Flutter package that makes it easy to implement audio recording and real-time FFT (Fast Fourier Transform) visualization in your Flutter apps.

When to Use? #

• 🎤 Voice recording app development
• 🎵 Real-time visualization for music players
• 🔊 Voice analysis tools
• 📊 Audio waveform visualization
• 🎙️ Podcast/recording apps

Key Features #

• ✅ Simple API: Implement recording and visualization with just a few lines of code
• ✅ Real-time FFT: Provides frequency data in real-time during recording
• ✅ No CustomPainter Required: Visualize bars using only Container (performance optimized)
• ✅ Platform Support: Android, iOS, and Web support
• ✅ State Management: Easy state management with ValueNotifier and Stream

✨ Key Features #

• 🎙️ Recording Control: Start, pause, resume, and stop recording
• 💾 File Saving: Save recordings as WAV files
• 📊 Real-time FFT Streaming: Real-time frequency analysis during recording
• 📈 Bar Visualization: Customizable FFT bar widget
• 🔊 Volume Measurement: Real-time decibel (dB) measurement

📦 Installation #

Step 1: Add Dependency to pubspec.yaml #

Open your project's pubspec.yaml file and add the following to the dependencies section:

dependencies:
  flutter:
    sdk: flutter
  fft_recorder_ui: ^1.0.2
  # Optional: Required for file saving
  path_provider: ^2.1.5

Step 2: Install Packages #

Run the following command in your terminal:

flutter pub get

Step 3: Version Compatibility #

• Flutter SDK: >=3.10.0
• Dart SDK: >=3.0.0 <4.0.0

🔐 Permissions Setup #

Mobile apps require platform-specific permission settings to use the microphone.

Android Permissions #

Open android/app/src/main/AndroidManifest.xml and add the following permission inside the <manifest> tag:

<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <!-- Add microphone permission -->
    <uses-permission android:name="android.permission.RECORD_AUDIO" />

    <application
        android:label="your_app_name"
        android:name="${applicationName}"
        android:icon="@mipmap/ic_launcher">
        <!-- ... rest of configuration ... -->
    </application>
</manifest>

File Location: android/app/src/main/AndroidManifest.xml

iOS Permissions #

Open ios/Runner/Info.plist and add the following key:

<key>NSMicrophoneUsageDescription</key>
<string>Microphone access is required for recording.</string>

File Location: ios/Runner/Info.plist

Complete Example:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <!-- ... existing configuration ... -->
    <key>NSMicrophoneUsageDescription</key>
    <string>Microphone access is required for recording.</string>
    <!-- ... rest of configuration ... -->
</dict>
</plist>

Web Platform #

On web, the browser automatically requests permissions. No additional setup is required.

🚀 Quick Start #

Basic Example (StatefulWidget) #

The simplest usage example:

import 'package:flutter/material.dart';
import 'package:fft_recorder_ui/fft_recorder_ui.dart';

class SimpleRecorderPage extends StatefulWidget {
  const SimpleRecorderPage({super.key});

  @override
  State<SimpleRecorderPage> createState() => _SimpleRecorderPageState();
}

class _SimpleRecorderPageState extends State<SimpleRecorderPage> {
  late final FftRecorderController _controller;
  List<double> _fftData = [];

  @override
  void initState() {
    super.initState();
    _controller = FftRecorderController();

    // Request permission
    _controller.requestMicPermission();

    // Subscribe to FFT data stream
    _controller.fftStream.listen((data) {
      if (mounted) {
        setState(() {
          _fftData = data;
        });
      }
    });
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  Future<void> _startRecording() async {
    await _controller.startRecording(filePath: '/path/to/recording.wav');
  }

  void _stopRecording() {
    _controller.stopRecording();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Simple Recorder')),
      body: Column(
        children: [
          // Recording control buttons
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              ElevatedButton(
                onPressed: _startRecording,
                child: const Text('Start Recording'),
              ),
              const SizedBox(width: 16),
              ElevatedButton(
                onPressed: _stopRecording,
                child: const Text('Stop Recording'),
              ),
            ],
          ),
          const SizedBox(height: 32),

          // FFT bar visualization
          BarVisualizer(
            data: _fftData,
            barCount: 32,
            barColor: Colors.blue,
            barWidth: 4,
            maxHeight: 100,
            spacing: 4,
            emptyText: 'Waiting for FFT data...',
          ),
        ],
      ),
    );
  }
}

GetX Pattern Example #

When using GetX:

import 'package:flutter/material.dart';
import 'package:get/get.dart';
import 'package:fft_recorder_ui/fft_recorder_ui.dart';

// Controller
class RecorderController extends GetxController {
  late final FftRecorderController _fftController;
  final RxList<double> fftData = <double>[].obs;
  final Rx<RecordingStatus> recordingStatus = RecordingStatus.idle.obs;

  @override
  void onInit() {
    super.onInit();
    _fftController = FftRecorderController();
    _fftController.requestMicPermission();

    // Subscribe to FFT stream
    _fftController.fftStream.listen((data) {
      fftData.value = data;
    });

    // Subscribe to recording status
    _fftController.recordingStatus.addListener(() {
      recordingStatus.value = _fftController.recordingStatus.value;
    });
  }

  Future<void> startRecording() async {
    await _fftController.startRecording(filePath: '/path/to/recording.wav');
  }

  void stopRecording() {
    _fftController.stopRecording();
  }

  @override
  void onClose() {
    _fftController.dispose();
    super.onClose();
  }
}

// View
class RecorderView extends GetView<RecorderController> {
  const RecorderView({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('GetX Recorder')),
      body: Column(
        children: [
          Obx(() => Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              ElevatedButton(
                onPressed: controller.recordingStatus.value == RecordingStatus.recording
                    ? null
                    : controller.startRecording,
                child: const Text('Start Recording'),
              ),
              const SizedBox(width: 16),
              ElevatedButton(
                onPressed: controller.recordingStatus.value == RecordingStatus.idle
                    ? null
                    : controller.stopRecording,
                child: const Text('Stop Recording'),
              ),
            ],
          )),
          const SizedBox(height: 32),
          Obx(() => BarVisualizer(
            data: controller.fftData,
            barCount: 32,
            barColor: Colors.green,
            barWidth: 4,
            maxHeight: 100,
            spacing: 4,
            emptyText: 'Waiting for FFT data...',
          )),
        ],
      ),
    );
  }
}

Complete Example (with File Saving and Playback) #

Complete example with file saving and playback functionality:

import 'dart:async';
import 'package:flutter/material.dart';
import 'package:fft_recorder_ui/fft_recorder_ui.dart';
import 'package:path_provider/path_provider.dart';
import 'package:audioplayers/audioplayers.dart';

class CompleteRecorderPage extends StatefulWidget {
  const CompleteRecorderPage({super.key});

  @override
  State<CompleteRecorderPage> createState() => _CompleteRecorderPageState();
}

class _CompleteRecorderPageState extends State<CompleteRecorderPage> {
  late final FftRecorderController _controller;
  late final AudioPlayer _player;
  StreamSubscription<List<double>>? _fftSubscription;
  List<double> _fftData = [];
  String? _savedFilePath;

  @override
  void initState() {
    super.initState();
    _controller = FftRecorderController();
    _player = AudioPlayer();

    // Request permission
    _controller.requestMicPermission();

    // Subscribe to FFT stream
    _fftSubscription = _controller.fftStream.listen((data) {
      if (mounted) {
        setState(() {
          _fftData = data;
        });
      }
    });
  }

  @override
  void dispose() {
    _fftSubscription?.cancel();
    _player.dispose();
    _controller.dispose();
    super.dispose();
  }

  Future<void> _startRecording() async {
    // Get app documents directory
    final dir = await getApplicationDocumentsDirectory();
    final timestamp = DateTime.now().millisecondsSinceEpoch;
    final filePath = '${dir.path}/recording_$timestamp.wav';

    await _controller.startRecording(filePath: filePath);
    setState(() {
      _savedFilePath = filePath;
    });
  }

  void _pauseRecording() {
    _controller.pauseRecording();
  }

  void _resumeRecording() {
    _controller.resumeRecording();
  }

  void _stopRecording() {
    final path = _controller.stopRecording();
    if (path != null) {
      setState(() {
        _savedFilePath = path;
      });
    }
  }

  Future<void> _playRecording() async {
    if (_savedFilePath != null) {
      await _player.stop();
      await _player.play(DeviceFileSource(_savedFilePath!));
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Complete Recorder')),
      body: Padding(
        padding: const EdgeInsets.all(16),
        child: Column(
          children: [
            // Recording status display
            ValueListenableBuilder<RecordingStatus>(
              valueListenable: _controller.recordingStatus,
              builder: (context, status, _) {
                String statusText;
                Color statusColor;
                switch (status) {
                  case RecordingStatus.idle:
                    statusText = 'Idle';
                    statusColor = Colors.grey;
                    break;
                  case RecordingStatus.recording:
                    statusText = 'Recording...';
                    statusColor = Colors.red;
                    break;
                  case RecordingStatus.paused:
                    statusText = 'Paused';
                    statusColor = Colors.orange;
                    break;
                }
                return Container(
                  padding: const EdgeInsets.all(12),
                  decoration: BoxDecoration(
                    color: statusColor.withOpacity(0.1),
                    borderRadius: BorderRadius.circular(8),
                  ),
                  child: Row(
                    mainAxisAlignment: MainAxisAlignment.center,
                    children: [
                      Icon(Icons.fiber_manual_record, color: statusColor),
                      const SizedBox(width: 8),
                      Text(
                        statusText,
                        style: TextStyle(
                          fontSize: 18,
                          fontWeight: FontWeight.bold,
                          color: statusColor,
                        ),
                      ),
                    ],
                  ),
                );
              },
            ),
            const SizedBox(height: 24),

            // Recording control buttons
            Wrap(
              spacing: 8,
              runSpacing: 8,
              children: [
                ElevatedButton.icon(
                  onPressed: _controller.recordingStatus.value == RecordingStatus.recording
                      ? null
                      : _startRecording,
                  icon: const Icon(Icons.play_arrow),
                  label: const Text('Start'),
                ),
                ElevatedButton.icon(
                  onPressed: _controller.recordingStatus.value == RecordingStatus.recording
                      ? _pauseRecording
                      : null,
                  icon: const Icon(Icons.pause),
                  label: const Text('Pause'),
                ),
                ElevatedButton.icon(
                  onPressed: _controller.recordingStatus.value == RecordingStatus.paused
                      ? _resumeRecording
                      : null,
                  icon: const Icon(Icons.play_arrow),
                  label: const Text('Resume'),
                ),
                ElevatedButton.icon(
                  onPressed: _controller.recordingStatus.value == RecordingStatus.idle
                      ? null
                      : _stopRecording,
                  icon: const Icon(Icons.stop),
                  label: const Text('Stop'),
                ),
                ElevatedButton.icon(
                  onPressed: _savedFilePath == null ? null : _playRecording,
                  icon: const Icon(Icons.volume_up),
                  label: const Text('Play'),
                ),
              ],
            ),
            const SizedBox(height: 24),

            // Saved file path display
            if (_savedFilePath != null)
              Container(
                padding: const EdgeInsets.all(12),
                decoration: BoxDecoration(
                  color: Colors.grey[200],
                  borderRadius: BorderRadius.circular(8),
                ),
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    const Text(
                      'Saved File:',
                      style: TextStyle(fontWeight: FontWeight.bold),
                    ),
                    const SizedBox(height: 4),
                    Text(
                      _savedFilePath!,
                      style: const TextStyle(fontSize: 12),
                    ),
                  ],
                ),
              ),
            const SizedBox(height: 24),

            // FFT bar visualization
            Container(
              width: double.infinity,
              height: 200,
              padding: const EdgeInsets.all(16),
              decoration: BoxDecoration(
                color: Colors.grey[900],
                borderRadius: BorderRadius.circular(12),
              ),
              child: BarVisualizer(
                data: _fftData,
                barCount: 64,
                barColor: Colors.cyan,
                barWidth: 4,
                maxHeight: 150,
                spacing: 4,
                emptyText: 'Waiting for FFT data...',
              ),
            ),

            const SizedBox(height: 16),

            // Volume display
            ValueListenableBuilder<double>(
              valueListenable: _controller.volumeDb,
              builder: (context, volume, _) {
                return Column(
                  children: [
                    Text('Volume: ${volume.toStringAsFixed(1)} dB'),
                    const SizedBox(height: 8),
                    LinearProgressIndicator(
                      value: (volume + 60) / 60, // Convert -60dB ~ 0dB to 0 ~ 1
                      minHeight: 8,
                    ),
                  ],
                );
              },
            ),
          ],
        ),
      ),
    );
  }
}

📚 Step-by-Step Tutorial #

Step 1: Project Setup and Package Installation #

1. Create a Flutter project (or use an existing one)
2. Add fft_recorder_ui dependency to pubspec.yaml
3. Run flutter pub get in terminal

flutter pub get

Step 2: Permissions Setup #

Android

Add microphone permission to android/app/src/main/AndroidManifest.xml:

<uses-permission android:name="android.permission.RECORD_AUDIO" />

iOS

Add microphone usage description to ios/Runner/Info.plist:

<key>NSMicrophoneUsageDescription</key>
<string>Microphone access is required for recording.</string>

Step 3: Controller Creation and Initialization #

class _MyRecorderPageState extends State<MyRecorderPage> {
  late final FftRecorderController _controller;

  @override
  void initState() {
    super.initState();
    _controller = FftRecorderController();

    // Request permission
    _controller.requestMicPermission();

    // Subscribe to FFT data stream
    _controller.fftStream.listen((data) {
      setState(() {
        _fftData = data;
      });
    });
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }
}

Step 4: UI Setup (BarVisualizer Widget) #

BarVisualizer(
  data: _fftData, // FFT data list (0.0 ~ 1.0)
  barCount: 32, // Number of bars
  barColor: Colors.blue, // Bar color
  barWidth: 4, // Bar width
  maxHeight: 100, // Maximum height
  spacing: 4, // Spacing between bars
  emptyText: 'Waiting for FFT data...', // Text to display when data is empty
)

Step 5: Recording Functionality Implementation #

// Start recording
Future<void> _startRecording() async {
  await _controller.startRecording(filePath: '/path/to/file.wav');
}

// Pause
void _pauseRecording() {
  _controller.pauseRecording();
}

// Resume
void _resumeRecording() {
  _controller.resumeRecording();
}

// Stop
void _stopRecording() {
  final savedPath = _controller.stopRecording();
  print('Saved path: $savedPath');
}

📖 API Documentation #

FftRecorderController #

The main controller for recording and FFT streaming.

Constructor

FftRecorderController({
  this.sampleRate = 22050,        // Sampling rate (Hz)
  this.channels = RecorderChannels.mono,  // Channels (mono/stereo)
  this.format = PCMFormat.f32le,  // PCM format
})

Parameters:

• sampleRate (int): Audio sampling rate. Default: 22050 Hz
• channels (RecorderChannels): Audio channels. RecorderChannels.mono or RecorderChannels.stereo
• format (PCMFormat): PCM format. FFT visualization requires PCMFormat.f32le

State and Data (ValueNotifier)

All states are provided as ValueNotifier and can be subscribed using ValueListenableBuilder or Obx.

recordingStatus (ValueNotifier

Represents the recording status.

Values:

• RecordingStatus.idle: Idle
• RecordingStatus.recording: Recording
• RecordingStatus.paused: Paused

Usage Example:

ValueListenableBuilder<RecordingStatus>(
  valueListenable: controller.recordingStatus,
  builder: (context, status, _) {
    return Text('Status: $status');
  },
)

isStreaming (ValueNotifier

Whether FFT streaming is active.

Usage Example:

ValueListenableBuilder<bool>(
  valueListenable: controller.isStreaming,
  builder: (context, isStreaming, _) {
    return Icon(isStreaming ? Icons.wifi : Icons.wifi_off);
  },
)

fftData (ValueNotifier<List

Current FFT data list. Each value is a normalized value between 0.0 and 1.0.

Usage Example:

ValueListenableBuilder<List<double>>(
  valueListenable: controller.fftData,
  builder: (context, data, _) {
    return BarVisualizer(data: data);
  },
)

volumeDb (ValueNotifier

Current volume in decibels (dB). Typically ranges from -60dB to 0dB.

Usage Example:

ValueListenableBuilder<double>(
  valueListenable: controller.volumeDb,
  builder: (context, volume, _) {
    return Text('Volume: ${volume.toStringAsFixed(1)} dB');
  },
)

Methods

requestMicPermission()

Requests microphone permission.

Returns: Future<bool> - Returns true if permission is granted, false if denied

Usage Example:

final granted = await controller.requestMicPermission();
if (!granted) {
  // Handle permission denied
  print('Microphone permission is required');
}

Notes:

• Always returns true on web (browser handles automatically)
• Only performs actual permission request on Android/iOS

init()

Initializes the recorder. Automatically called when startRecording() or startStreaming() is invoked, so you generally don't need to call this directly.

Returns: Future<void>

Usage Example:

await controller.init();

startRecording({String? filePath, bool startStreamingIfNeeded = true})

Starts recording. If a file path is provided, saves as a WAV file.

Parameters:

• filePath (String?, optional): File path to save. If null, recording only without file saving
• startStreamingIfNeeded (bool, default: true): Whether to automatically start FFT streaming

Returns: Future<void>

Usage Example:

// Recording only without file saving
await controller.startRecording();

// Recording with file saving
final dir = await getApplicationDocumentsDirectory();
final filePath = '${dir.path}/recording.wav';
await controller.startRecording(filePath: filePath);

Notes:

• If filePath is null or empty string, recording only without file saving
• File path must be valid if provided
• On web, browser manages file paths
• FFT streaming automatically starts when recording begins (default)
• If filePath is null, stopRecording() also returns null

pauseRecording()

Pauses recording. FFT streaming is also stopped.

Returns: void

Usage Example:

controller.pauseRecording();

resumeRecording()

Resumes paused recording. FFT streaming is automatically restarted.

Returns: void

Usage Example:

controller.resumeRecording();

Notes:

• Streaming is automatically restarted if it was stopped
• Calls startStreaming() asynchronously but doesn't wait for completion (fire-and-forget)

stopRecording()

Stops recording. FFT streaming is also stopped.

Returns: String? - Saved file path. Returns null if file saving was not performed

Usage Example:

final savedPath = controller.stopRecording();
if (savedPath != null) {
  print('File saved at: $savedPath');
}

startStreaming({Duration interval = const Duration(milliseconds: 16)})

Manually starts FFT streaming. Use only when not recording.

Parameters:

• interval (Duration, default: 16ms): FFT data update interval

Returns: Future<void>

Usage Example:

// Default update interval (16ms, ~60fps)
await controller.startStreaming();

// Custom update interval (33ms, ~30fps)
await controller.startStreaming(interval: const Duration(milliseconds: 33));

Notes:

• Streaming automatically starts during recording, so manual call is not needed
• Use when you need FFT visualization only when not recording

stopStreaming({bool force = false})

Stops FFT streaming.

Parameters:

• force (bool, default: false): Whether to force stop even during recording

Returns: void

Usage Example:

// Normal stop (ignored if recording)
controller.stopStreaming();

// Force stop (stops even during recording)
controller.stopStreaming(force: true);

Notes:

• When force: false, streaming won't stop if recording
• Streaming automatically stops when recording stops

dispose()

Releases the controller and cleans up all resources. Must be called when the widget is disposed.

Returns: void

Usage Example:

@override
void dispose() {
  controller.dispose();
  super.dispose();
}

Stream

fftStream (Stream<List

Real-time FFT data stream. Can be subscribed using listen().

Usage Example:

// Basic usage
controller.fftStream.listen((data) {
  setState(() {
    _fftData = data;
  });
});

// With GetX
controller.fftStream.listen((data) {
  fftData.value = data;
});

Notes:

• Must cancel subscription when widget is disposed (cancel())
• Stream is a broadcast stream, so multiple listeners can be registered

BarVisualizer Widget #

A widget that visualizes FFT data as bars.

Constructor

const BarVisualizer({
  required this.data,              // Required: FFT data list
  this.barCount = 9,               // Number of bars (default: 9)
  this.barWidth = 5.33,            // Bar width (default: 5.33)
  this.maxHeight = 48,             // Maximum height (default: 48)
  this.barColor = Colors.amberAccent, // Bar color (default: amberAccent)
  this.emptyText = 'Waiting for audio data...', // Empty data text
  this.spacing = 8,                // Spacing between bars (default: 8)
})

Parameters

data (List

FFT data list. Each value should be a normalized value between 0.0 and 1.0.

Example:

BarVisualizer(
  data: [0.1, 0.5, 0.8, 0.3, 0.9], // 5 FFT values
)

barCount (int, default: 9)

Number of bars to display. Automatically downsampled if less than data length.

Example:

BarVisualizer(
  data: fftData, // 128 FFT values
  barCount: 32,  // Display 32 bars (auto downsampling)
)

barWidth (double, default: 5.33)

Width of each bar.

Example:

BarVisualizer(
  barWidth: 4, // 4 pixels wide
)

maxHeight (double, default: 48)

Maximum height of bars. Each bar's height is calculated proportionally to data values.

Example:

BarVisualizer(
  maxHeight: 100, // Maximum 100 pixels height
)

barColor (Color, default: Colors.amberAccent)

Color of bars.

Example:

BarVisualizer(
  barColor: Colors.blue,        // Solid color
  barColor: Colors.cyan,         // Different color
  barColor: Color(0xFF00FF00),    // Custom color
)

spacing (double, default: 8)

Spacing between bars.

Example:

BarVisualizer(
  spacing: 4, // 4 pixels spacing
)

emptyText (String, default: 'Waiting for audio data...')

Text to display when data is empty.

Example:

BarVisualizer(
  emptyText: 'Waiting for FFT data...',
)

Usage Examples

// Basic usage
BarVisualizer(
  data: controller.fftData.value,
)

// Customized
BarVisualizer(
  data: controller.fftData.value,
  barCount: 64,
  barColor: Colors.cyan,
  barWidth: 4,
  maxHeight: 150,
  spacing: 4,
  emptyText: 'Waiting for FFT data...',
)

// With ValueListenableBuilder
ValueListenableBuilder<List<double>>(
  valueListenable: controller.fftData,
  builder: (context, data, _) {
    return BarVisualizer(
      data: data,
      barCount: 32,
    );
  },
)

🔧 Troubleshooting Guide #

Permission Issues #

When Permission is Denied

Symptoms: requestMicPermission() returns false or recording doesn't start

Solutions:

1. Android: Check if permission is added in AndroidManifest.xml
2. iOS: Check if NSMicrophoneUsageDescription is added in Info.plist
3. Completely close and restart the app
4. Check app permissions in device settings and manually allow

Code Example:

final granted = await controller.requestMicPermission();
if (!granted) {
  // Notify user that permission is needed
  showDialog(
    context: context,
    builder: (context) => AlertDialog(
      title: const Text('Microphone Permission Required'),
      content: const Text('Microphone permission is required for recording. Please allow it in settings.'),
      actions: [
        TextButton(
          onPressed: () => Navigator.pop(context),
          child: const Text('OK'),
        ),
      ],
    ),
  );
}

Recording Doesn't Start #

Checklist:

• ✅ Check if permission is granted (requestMicPermission() result)
• ✅ Check if init() or startRecording() is called
• ✅ Check if file path is valid (when saving file)
• ✅ Check if another app is using the microphone
• ✅ Check if device microphone is working

Debugging Code:

Future<void> _startRecording() async {
  // Check permission
  final hasPermission = await controller.requestMicPermission();
  print('Permission status: $hasPermission');

  if (!hasPermission) {
    print('Permission not granted');
    return;
  }

  // Start recording
  try {
    await controller.startRecording(filePath: '/path/to/file.wav');
    print('Recording started successfully');
  } catch (e) {
    print('Recording start failed: $e');
  }
}

FFT Data Not Displaying #

Symptoms: BarVisualizer shows no data or always shows empty text

Solutions:

1. Check if stream subscription is properly set up
2. Check if recording has started or startStreaming() is called (FFT data is generated only when streaming is active)
3. Check if fftData.value is not empty
4. Check if properly subscribed using ValueListenableBuilder or Obx
5. Check if isStreaming.value is true

Debugging Code:

// Check FFT stream subscription
controller.fftStream.listen((data) {
  print('FFT data received: ${data.length} items, first value: ${data.isNotEmpty ? data[0] : 'none'}');
  setState(() {
    _fftData = data;
  });
});

// Check ValueNotifier directly
controller.fftData.addListener(() {
  print('fftData changed: ${controller.fftData.value.length} items');
});

Correct Usage Example:

// ✅ Correct: Use ValueListenableBuilder
ValueListenableBuilder<List<double>>(
  valueListenable: controller.fftData,
  builder: (context, data, _) {
    return BarVisualizer(data: data);
  },
)

// ❌ Incorrect: Read only once
BarVisualizer(data: controller.fftData.value) // Won't update!

File Save Path Issues #

Symptoms: File not saved or path not found

Solutions:

1. Use path_provider package to get correct path
2. Check if directory exists in file path
3. On web, browser manages file paths, so handle differently

Correct File Path Example:

import 'package:path_provider/path_provider.dart';

Future<String> getRecordingPath() async {
  final dir = await getApplicationDocumentsDirectory();
  final timestamp = DateTime.now().millisecondsSinceEpoch;
  return '${dir.path}/recording_$timestamp.wav';
}

// Usage
final filePath = await getRecordingPath();
await controller.startRecording(filePath: filePath);

Platform-Specific Differences #

Android

• If permission is denied, need to navigate to settings screen
• Runtime permission request required on Android 6.0+

iOS

• App may be rejected if permission description (NSMicrophoneUsageDescription) is missing
• Microphone may not work in simulator

Web

• Browser automatically requests permission
• File paths are managed by browser
• Microphone access may be unavailable on some browsers without HTTPS

🌐 Platform-Specific Guide #

Mobile (Android/iOS) #

Common

• Microphone permission setup required
• File system access available (use path_provider)
• Real-time FFT streaming supported

Android

• Permission: RECORD_AUDIO permission required
• File Path: Use getApplicationDocumentsDirectory() recommended
• Notes: Runtime permission request required on Android 6.0+

iOS

• Permission: NSMicrophoneUsageDescription required
• File Path: Use getApplicationDocumentsDirectory() recommended
• Notes: Microphone may not work in simulator

Web #

Features

• Browser automatically requests permission
• File paths are managed by browser
• HTTPS required (some browsers)

Limitations

• Cannot directly specify file save path
• Behavior may differ by browser
• Microphone access unavailable without HTTPS

Web Usage Example

// On web, set filePath to null or omit
await controller.startRecording();

// Or use browser-managed path
import 'package:flutter/foundation.dart';

if (kIsWeb) {
  await controller.startRecording(); // Recording only without file saving
} else {
  final dir = await getApplicationDocumentsDirectory();
  await controller.startRecording(filePath: '${dir.path}/recording.wav');
}

🚀 Advanced Usage #

Adjusting FFT Update Interval #

Default update interval is 16ms (~60fps). Can be adjusted for performance or battery.

// Faster updates (8ms, ~120fps) - increased battery consumption
await controller.startStreaming(interval: const Duration(milliseconds: 8));

// Slower updates (33ms, ~30fps) - battery saving
await controller.startStreaming(interval: const Duration(milliseconds: 33));

Custom Sampling Rate #

Default sampling rate is 22050 Hz. Can be changed as needed.

// High quality recording (44100 Hz)
final controller = FftRecorderController(sampleRate: 44100);

// Low quality recording (16000 Hz) - save file size
final controller = FftRecorderController(sampleRate: 16000);

Note: Higher sampling rates increase file size and CPU usage.

Stereo Recording #

Default is mono channel. To record in stereo:

final controller = FftRecorderController(
  channels: RecorderChannels.stereo,
);

Memory Management Tips #

1. Cancel Stream Subscription: Always cancel subscription when widget is disposed
2. Controller Dispose: Dispose controller when widget is disposed
3. Prevent Unnecessary Updates: Use mounted check to prevent updates on disposed widgets

StreamSubscription<List<double>>? _subscription;

@override
void initState() {
  super.initState();
  _subscription = controller.fftStream.listen((data) {
    if (mounted) { // ✅ mounted check required!
      setState(() {
        _fftData = data;
      });
    }
  });
}

@override
void dispose() {
  _subscription?.cancel(); // ✅ Cancel subscription required!
  controller.dispose(); // ✅ Controller dispose required!
  super.dispose();
}

Battery Optimization #

1. Increase FFT Update Interval: 16ms → 33ms or 50ms
2. Stream Only When Needed: Stop streaming when not recording
3. Use Lower Sampling Rate: 22050 Hz → 16000 Hz

// Battery saving settings
final controller = FftRecorderController(
  sampleRate: 16000, // Lower sampling rate
);

// Slower update interval
await controller.startStreaming(
  interval: const Duration(milliseconds: 50), // 20fps
);

Architecture Patterns #

Controller Pattern

FftRecorderController uses ValueNotifier for state management, which fits well with Flutter's reactive programming pattern.

Advantages:

• Automatic UI updates on state changes
• Multiple widgets can subscribe to same state
• Easy to test

Usage Pattern:

// Use ValueListenableBuilder
ValueListenableBuilder<RecordingStatus>(
  valueListenable: controller.recordingStatus,
  builder: (context, status, _) {
    return Text('Status: $status');
  },
)

// Use GetX Obx
Obx(() => Text('Status: ${controller.recordingStatus.value}'))

Stream Pattern

FFT data is provided as a Stream for asynchronous processing.

Advantages:

• Real-time data processing
• Multiple listeners can be registered
• Easy asynchronous processing

Usage Pattern:

// Basic usage
controller.fftStream.listen((data) {
  // Process data
});

// Register multiple listeners
controller.fftStream.listen((data) {
  // UI update
});
controller.fftStream.listen((data) {
  // Analysis logic
});

📱 Example App #

This package includes a complete example app.

Running the Example App #

1. Clone or download the project
2. Navigate to example folder
3. Run flutter pub get
4. Run flutter run

cd example
flutter pub get
flutter run

Example App Features #

• ✅ Start/pause/resume/stop recording
• ✅ Real-time FFT bar visualization
• ✅ Play recorded files
• ✅ Display file path
• ✅ Volume display

Example Code Location #

• Example App: example/lib/main.dart
• Test Code: test/fft_recorder_ui_test.dart

📝 Notes #

• FFT visualization works only with PCMFormat.f32le format
• Valid file path required for file saving
• On web, browser manages file paths
• FFT streaming automatically starts during recording
• Must dispose Controller when widget is disposed

🔗 Related Packages #

• flutter_recorder: Audio recording engine
• permission_handler: Permission management
• path_provider: File path management (used in examples)

📄 License #

This package follows the MIT license.

🤝 Contributing #

For bug reports or feature suggestions, please contact the maintainer:

Email: dlgodlf11 [at] naeileun [dot] dev

Happy Coding! 🎉
