smart_video_thumbnail

pub package Platform License: MIT

A powerful Flutter plugin for generating video thumbnails using native FFmpeg engine. Fast, reliable, and supports all major video formats.

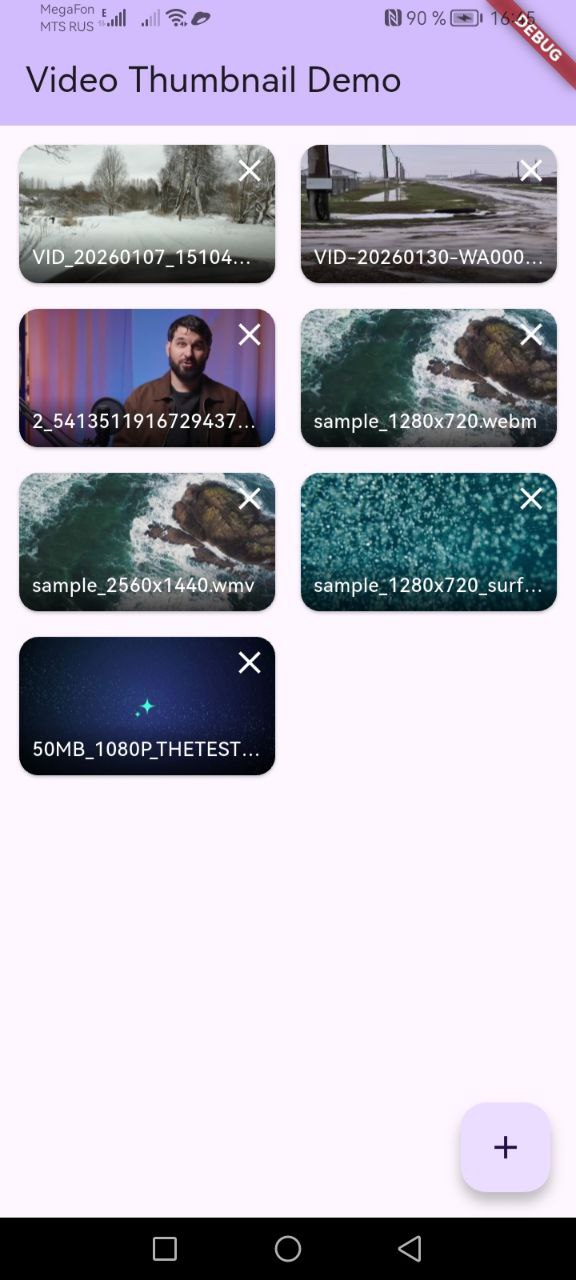

📸 Screenshot

Example App

Example app showing video thumbnails in a grid layout

✨ Features

  • 🎬 Native FFmpeg - Uses CPU-only decoding for maximum compatibility
  • 📦 All Formats - Supports MP4, AVI, MKV, FLV, WMV and other FFmpeg formats
  • 🚀 Fast - Optimized frame extraction with minimal overhead
  • 💾 Caching - Automatic thumbnail caching for better performance (v0.2.0)
  • 📊 Progress - Real-time progress callbacks during generation (v0.2.0)
  • 🎯 Flexible - Multiple seek strategies (normal, keyframe, firstFrame)
  • 🔧 Independent - No dependency on MediaMetadataRetriever or system APIs
  • 💪 Reliable - Works with corrupted or unusual video files
  • 📱 Optimized - ARM-only builds for smaller APK size (v0.2.0)

📦 Installation

Add this to your package's pubspec.yaml file:

dependencies:
  smart_video_thumbnail: ^0.2.0

Then run:

flutter pub get

Android Setup

No additional setup required! The plugin automatically downloads the native FFmpeg library from JitPack.

Note: The first build may take a bit longer as Gradle downloads the native library (~8MB).

🚀 Usage

Basic Example

import 'package:smart_video_thumbnail/smart_video_thumbnail.dart';

// Extract thumbnail at 1 second
final thumbnail = await SmartVideoThumbnail.getThumbnail(
  videoPath: '/path/to/video.mp4',
  timeMs: 1000,
  width: 320,
  height: 180,
);

if (thumbnail != null) {
  // thumbnail is Uint8List with RGBA8888 data
  // Size: width * height * 4 bytes
  print('Thumbnail extracted: ${thumbnail.length} bytes');
}

Display with Image Widget

import 'dart:ui' as ui;
import 'dart:async';
import 'package:flutter/material.dart';

Future<ui.Image?> createImageFromRGBA(
  Uint8List rgba,
  int width,
  int height,
) async {
  final completer = Completer<ui.Image>();

  ui.decodeImageFromPixels(
    rgba,
    width,
    height,
    ui.PixelFormat.rgba8888,
    (ui.Image image) {
      completer.complete(image);
    },
  );

  return completer.future;
}

// In your widget
final thumbnail = await SmartVideoThumbnail.getThumbnail(
  videoPath: videoPath,
  width: 320,
  height: 180,
);

if (thumbnail != null) {
  final image = await createImageFromRGBA(thumbnail, 320, 180);
  return RawImage(image: image);
}

Extraction Strategies

// Normal seek (default)
final thumbnail1 = await SmartVideoThumbnail.getThumbnail(
  videoPath: videoPath,
  strategy: ThumbnailStrategy.normal,
);

// Keyframe-focused seek (for AVI/FLV)
final thumbnail2 = await SmartVideoThumbnail.getThumbnail(
  videoPath: videoPath,
  strategy: ThumbnailStrategy.keyframe,
);

// First available frame (fastest)
final thumbnail3 = await SmartVideoThumbnail.getThumbnail(
  videoPath: videoPath,
  strategy: ThumbnailStrategy.firstFrame,
);

📖 API Reference

getThumbnail

Extracts a thumbnail from a video file.

Parameters:

Parameter Type Required Default Description
videoPath String ✅ Yes - Path to the video file
timeMs int ❌ No 1000 Target position in milliseconds
width int ❌ No size Thumbnail width in pixels
height int ❌ No size * 9/16 Thumbnail height in pixels
size int ❌ No 720 Alternative way to set dimensions
strategy ThumbnailStrategy ❌ No normal Frame extraction strategy

Returns: Future<Uint8List?> - RGBA8888 pixel data or null on error

Data Format

The plugin returns Uint8List with RGBA8888 format:

  • 4 bytes per pixel (Red, Green, Blue, Alpha)
  • Data size: width * height * 4 bytes
  • Pixel order: left to right, top to bottom

📱 Platform Support

Platform Status Architectures
Android ✅ Supported arm64-v8a, armeabi-v7a
iOS ⏳ Coming Soon -

📋 Requirements

Android

  • minSdk: 26 (Android 8.0+)
  • targetSdk: 34
  • NDK: r21 or higher
  • CMake: 3.18.1 or higher
  • FFmpeg: Included in plugin (v4.4.2)

🏗️ Architecture

The plugin consists of three layers:

┌─────────────────────────────────┐
│      Flutter App (Dart)         │
└────────────┬────────────────────┘
             │ MethodChannel
┌────────────▼────────────────────┐
│  SmartVideoThumbnailPlugin (Kt) │
└────────────┬────────────────────┘
             │ JNI
┌────────────▼────────────────────┐
│   SmartFfmpegBridge (C/C++)     │
└────────────┬────────────────────┘
             │
┌────────────▼────────────────────┐
│  FFmpeg Libraries (v4.4.2)      │
│  • libavformat • libavcodec     │
│  • libswscale  • libavutil      │
└─────────────────────────────────┘

Layers:

  1. Dart API - Flutter interface (smart_video_thumbnail.dart)
  2. Kotlin Bridge - JNI bridge (SmartVideoThumbnailPlugin.kt)
  3. Native Library - FFmpeg decoding (smart-ffmpeg-android)

⚡ Performance

Typical frame extraction times:

Format Codec Time
MP4 H.264 50-150ms
AVI MPEG-4 100-200ms
MKV H.265 150-300ms
FLV - 100-250ms

Performance factors:

  • Video format and codec
  • Output image size
  • Frame position in video
  • Device performance

🐛 Debugging

Enable Android logging:

adb logcat | grep -E "SmartVideoThumbnail|SmartFfmpegBridge"

Example logs:

I/SmartVideoThumbnail: 🎬 getThumbnail: path=/path/to/video.mp4, targetMs=1000, size=320x180
I/SmartFfmpegBridge: Extracting thumbnail from: /path/to/video.mp4 at 1000 ms
I/SmartFfmpegBridge: Successfully extracted thumbnail: 230400 bytes
I/SmartVideoThumbnail: ✅ getThumbnail: Thumbnail extracted successfully (230400 bytes)

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

🔗 Links

👨‍💻 Author

PathCreator Team

If you find this plugin helpful, please give it a ⭐ on GitHub!
